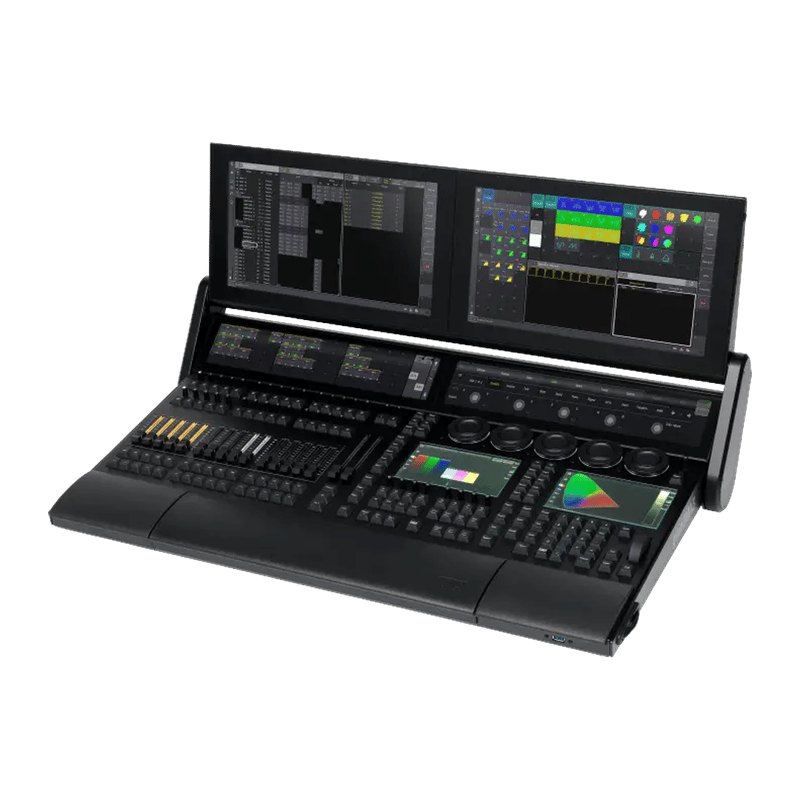

grandMA3 Light

grandMA3

MA Lighting's full-featured mid-range console runs the complete grandMA3 OS with motorised faders, a built-in UPS, and silent backlit keys. Available to hire on the Gold Coast and in Brisbane.

Brand / Manufacturer	MA Lighting
Art. No.	4010502
Form Factor	Full-size lighting control console
Faders	15 × motorized 60mm backlit + 2 × motorized 100mm A/B faders
Encoders	41 × RGB backlit rotary + 5 × backlit dual encoders
Playbacks	60 independent playbacks + 16 assignable X-keys
Screens	2 × foldable internal multi-touch + 2 × letterbox + 2 × command; supports 2 external via DisplayPort
DMX Outputs / Input	6 × DMX512-A Out (5-pin XLR) / 1 × DMX512-A In (5-pin XLR)
Network	3 × etherCON/RJ45
Parameters	16,384 standard (scalable to 250,000 with grandMA3 processing units)
Other Connectors	MIDI In/Out, Linear Timecode, Audio In, GPI, S/PDIF In/Out, 6 × USB
Power	300VA max, AC 100–240V 50/60Hz (powerCON TRUE1)
Built-in UPS	Yes, integrated uninterruptible power supply
Weight	33 kg (73 lbs)
Dimensions (operating)	854 × 584 × 409mm / 34 × 23 × 17 in
Dimensions (folded)	854 × 539 × 181mm / 34 × 22 × 8 in
Operating Temperature	0°C to 40°C / 32°F to 104°F
Special Features	Integrated keyboard drawer, silent (clickless) keys, individually backlit controls

Downloads Spec Sheet (PDF)

See it in action

grandMA3 Console

Close-ups of the grandMA3 console: faders, encoders, the touch screens and the rear connectors.

Gear reel0:28

See all our reels Watch on Instagram

Overview

About the grandMA3 Light

The grandMA3 Light is MA Lighting’s full-featured mid-range console in the grandMA3 family, the work-horse of the range, as MA themselves describe it. It delivers the complete grandMA3 operating system, show-file compatibility, and network architecture as the grandMA3 Full in a purpose-built control surface designed for the most demanding live productions. Running the grandMA3 OS, the desk integrates fully into any grandMA3 network: processing units, onPC nodes, MA switches, and grandMA3 Full consoles can all be combined on the same session.

The desk ships with an integrated keyboard drawer, a built-in uninterruptible power supply (UPS) for protection against brownouts and momentary power loss, and individually backlit, dimmable silent (clickless) keys, making it equally at home in a quiet theatre and a high-noise arena environment.

Control Surface & Connectivity

The grandMA3 Light’s control surface is built around 15 motorized 60mm faders and 2 motorized 100mm A/B faders with motor feedback for precise cue tracking. 41 RGB backlit rotary encoders and 5 dual encoders handle parameter control, while 60 independent playbacks and 16 assignable X-keys give operators direct access to the entire show structure without menu navigation. The six-screen layout (2 foldable internal multi-touch monitors, 2 letterbox screens, 2 command screens, plus 2 external DisplayPort outputs) provides simultaneous views of programmer, patch, executor, and playback data.

Connectivity is comprehensive: 6 DMX outputs and 1 DMX input (5-pin XLR), 3 etherCON ports, MIDI In/Out, Linear Timecode, Audio In, GPI for remote control, S/PDIF, and 6 USB ports. Standard parameters sit at 16,384 HTP/LTP, scaling to 250,000 parameters with grandMA3 processing units added to the network.

Ideal Applications

The grandMA3 Light is the console of choice for large-scale theatrical seasons, touring concerts, television broadcast environments, corporate events, and festival rigs where the full MA3 platform is required. Its built-in UPS and silent operation make it an excellent primary desk for theatre and broadcast, and it integrates seamlessly as a programmer station, backup desk, or primary surface alongside other grandMA3 hardware on networked productions.

Hire the grandMA3 Light in Gold Coast & Brisbane

The grandMA3 Light is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and South East Queensland. Whether you’re running a touring concert, a theatrical season, or a high-production-value corporate event, our grandMA3 Light gives your lighting director the full MA3 experience on a battle-tested platform. Contact us to check availability and receive a tailored hire quote for your production.
