ACME Tour Bar

Name: ACME Tour Bar
Brand: Acme
Availability: InStock

Bar / Strip IP Rated

Request a quote Call 0410 273 606

Hire the ACME Tour Bar: 10×15W RGBW pixel LED bar, IP65 rated, with a 10° beam. LED bar hire in Gold Coast & Brisbane.

LED Type	10 × 15W RGBW
Beam Angle	10° (60° with ACME's optional diffusion film)
Control Protocols	DMX512, RDM, master/slave
Power Consumption	130W (AC 100 to 240 V, 50/60 Hz)
IP Rating	IP65
Dimensions	953 × 104 × 112 mm
Weight	10 to 10.6 kg
Connectors	3-pin waterproof DMX in/out, waterproof power in/out
DMX Channels	4 / 5 / 7 / 40 ch (40 ch: each of the 10 cells on its own RGBW)

Downloads Spec Sheet (PDF) DMX Chart User Manual (PDF)

Request Quote Email us

Overview

About the ACME Tour Bar

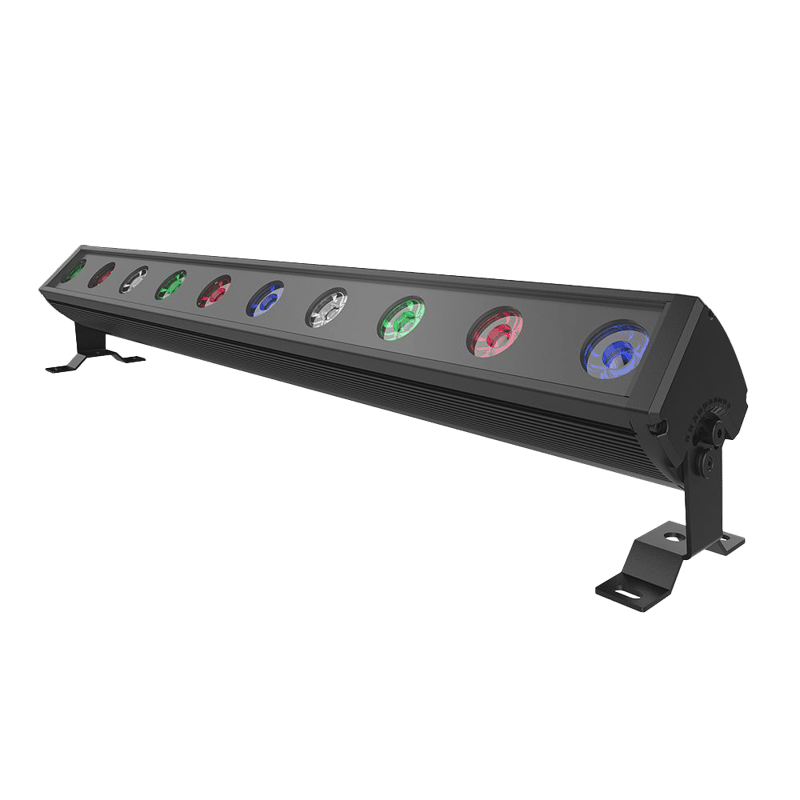

The ACME Tour Bar is ACME's Tour Pixel Bar 1010 II (TB-1010QW II): a 953 mm LED batten with ten 15W RGBW LEDs behind a 10° lens, rated IP65 for wet locations. It works on outdoor festival and touring rigs as well as in a fixed install.

Each of the ten cells can be controlled on its own, so the bar runs pixel chases and colour gradients along its length. Bars set end to end make one continuous line for moving water-style effects, and stacked they build a matrix. The 10° beam is tight enough for aerial looks from a truss; ACME's optional diffusion film opens it to 60° to wash a surface, and an optional barn door cuts glare and spill.

Control & Integration

The Tour Bar runs on DMX512 in 4, 5, 7 or 40-channel modes; the 40-channel mode gives every cell its own red, green, blue and white. It also supports RDM and master/slave operation, and takes firmware updates over the DMX line. DMX links through 3-pin waterproof connectors and power through waterproof in and out connectors, so bars chain along a truss. Double mounting brackets tilt the bar through 180°, forwards and back, and each bar draws 130 W.

Typical Applications

Concerts, touring productions, outdoor festivals, corporate events and stage sets: as a pixel-mapped truss topper, a stage-front line or a wall uplight, with the IP65 rating for anywhere the weather can reach it.

Hire the ACME Tour Bar in Gold Coast & Brisbane

The ACME Tour Bar is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and South East Queensland. Whether you’re planning a touring concert, outdoor festival, corporate event, or broadcast production, our team can advise on quantities, rigging configuration, and control integration. Contact us for availability and a tailored quote.
