Astera Pixel Brick 8-Way Kit

Name: Astera Pixel Brick 8-Way Kit
Brand: Astera
Availability: InStock

Effect IP Rated

Request a quote Call 0410 273 606

Eight Astera PB15 PixelBricks with BeamSofteners and FloodFilters in a PowerBox case that charges every unit on one TRUE1 feed, running 13, 17, or 30 degree beams. Hire across the Gold Coast.

Just need one? Astera Pixel Brick, single unit

Kit Contents	8× PB15 PixelBricks, PowerBox, 8× BrickConnects, 8× 17° BeamSofteners, 8× 30° FloodFilters
Charging Case	Wheeled hard case with retractable handle, charges all 8 bricks inside
Power Input	1× PowerCON TRUE1 for the full case
LED (per brick)	15W RGBMA, 522 lm calibrated white
CRI	≥96 (at 5,600K)
Beam Angle	13° native; 17° / 30° with included filters
Battery Runtime	Up to 20 hours (single colour) / ~3 hours (full output)
Control Protocols	CRMX, wired DMX, Bluetooth (AsteraApp), Art-Net
IP Rating	IP65
Brick Dimensions	103 × 103 × 108 mm
Brick Weight	1.1 kg

Downloads Spec Sheet (PDF) DMX Chart GDTF Fixture File

Manufacturer

View the Pixel Brick 8-Way Kit at Astera

Request Quote Email us

Overview

About the Astera Pixel Brick 8-Way Kit

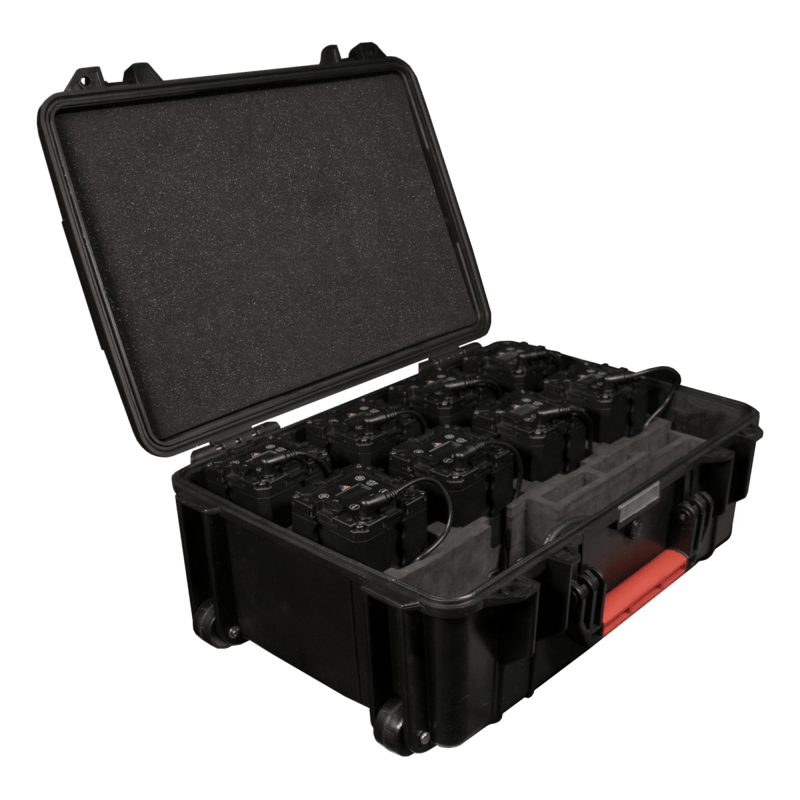

The Pixel Brick 8-Way Kit packs eight Astera PB15 PixelBricks, their beam-shaping accessories and a PowerBox into one wheeled hard case that charges every unit in place. A full battery pixel-PAR package travels, charges and turns around as a single item on one PowerCON TRUE1 feed.

What’s in the case

8× PB15 PixelBrick
1× PowerBox that charges all 8 bricks inside the case
8× BrickConnect connectors for building lines and shapes
8× 17° BeamSofteners and 8× 30° FloodFilters
PowerCON TRUE1 cable and waterproof port covers

Three beams per brick

Each brick runs its native 13° punch, or drops to a 17° softened beam or a 30° flood with the included filters. That covers uplighting, hidden-source colour washes and pixel-mapped effects from the same case. IP65-rated with CRI of 96 and above, CRMX, wired DMX, Bluetooth and Art-Net control, and up to 20 hours of battery runtime.

Hire it for your next show

The Pixel Brick 8-Way Kit is part of the Krank’d battery-powered inventory, available across the Gold Coast, Brisbane, and Australia-wide. We supply, rig, and operate. Your event, our show.
