Obsidian Control Netron RP2

DMX Node

Hire the Netron RP2: intelligent 2-way DMX power relay with real-time power monitoring & diagnostics. Equipment protection in Gold Coast & Brisbane.

Manufacturer	Obsidian Control Systems
Model	Netron RP2
Type	DMX Power Relay
Protocol	DMX512, RDM
Relay Outputs	2 independent DMX-controlled relay circuits
DMX / RDM	5-pin DMX/RDM In and Thru (front panel)
Power Connectivity	IP65 locking Power In and dual Power Out (rear panel)
Power Sequencing	Automated sequencing with configurable delay based on DMX signal sensing
Power Control	High current dual-pole relays for full power cutoff
Scheduling	24/7 event scheduler with auto-shutdown
Voltage Monitoring	Real-time and historical tracking via OLED or RDM
Display	1.3″ OLED with rotary encoder
Mounting Options	Standalone, truss-mount (M10/M12), wall, or DIN rail (horizontal and vertical)
Power Requirement	100–240V AC, 47–63Hz
Operating Temperature	0°C to 40°C
Usage	Indoor only
Dimensions	173.5 × 132.6 × 50 mm
Weight	0.6 kg

Downloads Spec Sheet (PDF)

View the Control Netron RP2 at Obsidian Control Systems

Overview

About the Obsidian Control Netron RP2

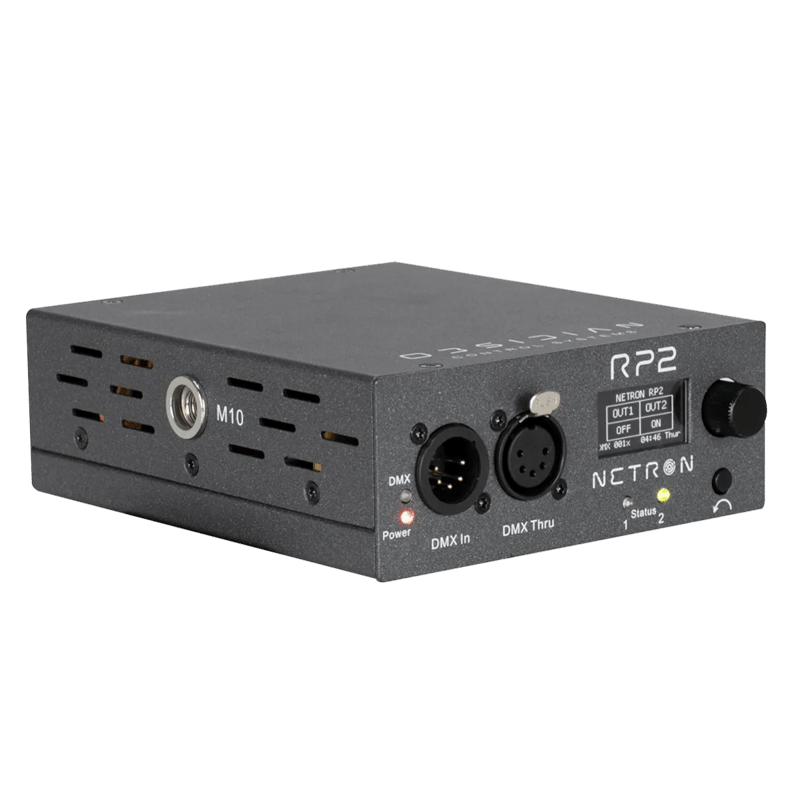

The Obsidian Control Netron RP2 is a compact, intelligent DMX power relay designed to give lighting operators precise control over mains power distribution to connected fixtures. Using two independent high-current dual-pole relay circuits, the RP2 can completely cut power to fixtures on command, protecting equipment from prolonged standby draw, reducing electrical wear, and extending the operational lifespan of your rig.

Control is managed entirely over DMX512 and RDM, with a front-panel 5-pin DMX In and Thru for easy signal chaining. The rear panel features IP65-rated locking power connectors (one inlet and two outlets), keeping mains connections secure in demanding production environments. Configuration and real-time feedback are handled through a 1.3″ OLED display with rotary encoder, giving technicians on-site access to voltage monitoring, power status, and historical data without needing a laptop or separate RDM controller.

Key Features for Live Production

The RP2 is built with the realities of touring and installation in mind. Automated power sequencing with configurable delay times, triggered by DMX signal sensing, allows safe, ordered startup and shutdown of fixture loads without manual intervention. The onboard 24/7 event scheduler adds an auto-shutdown function, enabling operators to limit unnecessary fixture run-time even when a full-time operator isn’t present, a practical feature for permanent installs, themed environments, and unattended displays.

Mounting flexibility is a genuine strength: the unit supports standalone placement, truss-mounting via M10/M12 fittings, wall installation, and both horizontal and vertical DIN rail mounting. Weighing just 0.6 kg and measuring 173.5 × 132.6 × 50 mm, the RP2 is easily integrated into flown rigs, equipment racks, or road cases without adding meaningful weight to your load.

Hire the Obsidian Control Netron RP2 in Gold Coast & Brisbane

The Obsidian Control Netron RP2 is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and South East Queensland. Whether you’re running a festival rig that needs intelligent power management, a corporate installation with scheduled display hours, or a theatre fit-out where fixture longevity matters, the RP2 is a professional-grade solution worth having in your data and power distribution package. Contact us to check availability and request a quote.
