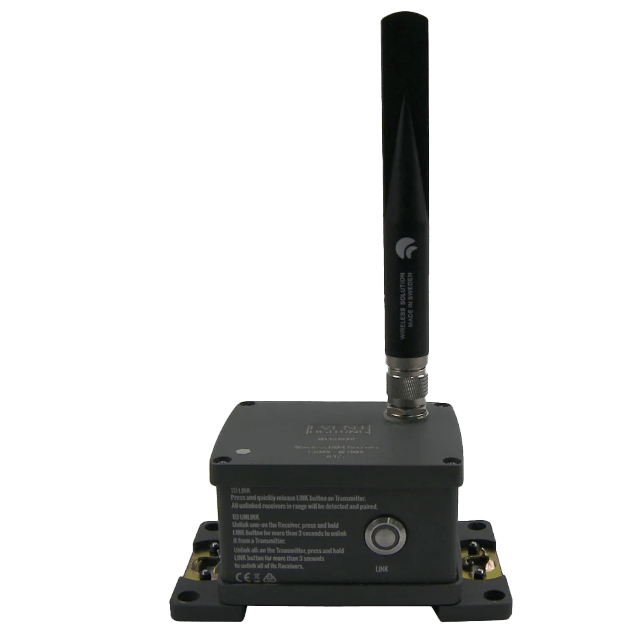

Wireless DMX Receiver WPRORXIP

Receiver

Rent the WPRORXIP: IP65 wireless DMX receiver with W-DMX G3/G4S & CRMX, 500m range. Outdoor wireless DMX hire in Gold Coast & Brisbane.

Protocol	W-DMX G3, G4S, CRMX
Wireless Range	500 m (line-of-sight)
DMX Universes	1 (512 channels)
Operating Frequency	2.4 GHz
Connectivity	5-pin XLR (female), Powercon True1 input
Antenna Type	5 dBi
IP Rating	IP65
Dimensions	135 × 90 × 265 mm
Weight	1.0 kg
Mounting	Truss mounting bracket included

Downloads Spec Sheet (PDF)

Overview

About the Wireless DMX Receiver WPRORXIP

The WPRORXIP is a professional-grade, IP65-rated wireless DMX receiver built to handle the demands of outdoor productions and challenging environments. Its weatherproof housing makes it equally at home on an exposed festival truss, a wet-weather outdoor stage, or a touring rig where conditions are unpredictable. Powercon True1 input provides a secure, locking mains connection, and a 5-pin XLR female output feeds directly into any DMX fixture or splitter downstream.

Protocol Compatibility & Range

Supporting W-DMX G3, G4S, and CRMX protocols, the WPRORXIP integrates seamlessly with the most widely used wireless DMX ecosystems in the live event industry. A full universe of 512 DMX channels is transmitted over the 2.4 GHz band via a 5 dBi antenna, delivering a reliable line-of-sight range of up to 500 metres, more than sufficient for large-scale outdoor festivals, stadium concerts, and distributed architectural installations where cable runs are impractical or impossible.

Applications in Live Events & Production

The WPRORXIP is particularly well suited to productions that demand both range and environmental resilience. Common applications include outdoor concert rigs where IP-rated fixtures are cabled back to a receiver on truss, festival sites with multiple stage zones controlled from a single transmitter, film and TV locations where laying DMX cable would interrupt traffic flow or create tripping hazards, and corporate events with long throw or remote lighting positions. The included truss mounting bracket simplifies integration into standard rigging systems without the need for additional hardware.

Hire the Wireless DMX Receiver WPRORXIP in Gold Coast & Brisbane

The Wireless DMX Receiver WPRORXIP is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the wider South East Queensland region. Whether you need a single unit for a pop-up outdoor stage or multiple receivers across a large festival site, our team can advise on system configuration and protocol compatibility with your existing wireless DMX setup. Contact us for availability, pricing, and a tailored quote.
