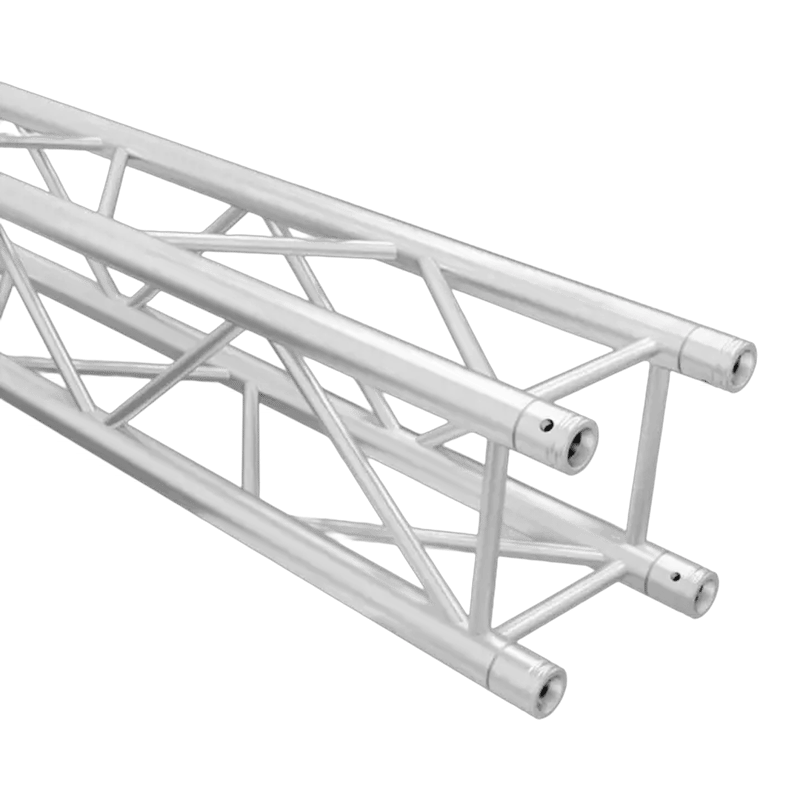

Global F34 Truss - 0.25m

Truss

Compact 250 mm F34 segment for fine-tuning run lengths and bridging corners, built to full spec with 50 mm main tubes, 20 mm bracing, and EN-AW 6082 T6 aluminium. Hire across the Gold Coast and Brisbane.

Type	F34 square truss straight segment
Length	250mm (0.25m / 0.82ft)
Weight	5.09 kg (11.2 lbs)
SKU	SQ-2925P
Series	F34 Square Truss
Material	EN-AW 6082 T6 aluminium alloy
Main Tubes	50mm OD × 2mm wall
Bracing	20mm × 2mm diagonal
Section Width	290mm (11 7/16″)
Brand	Global Truss

Downloads Spec Sheet (PDF)

View the F34 Truss - 0.25m at Global Truss

Overview

About the Global F34 – 0.25m Straight Segment

The Global F34 0.25m straight segment is a compact 250mm connector piece used to fine-tune truss run lengths, bridge gaps between corners, or act as a spacer in complex rigging configurations. Despite its short length, it shares the full structural specification of the longer F34 segments: 50mm main tubes, 20mm diagonal bracing, and EN-AW 6082 T6 aluminium, making it a reliable structural member, not just a filler piece.

Typical Applications

Filling gaps in truss runs where standard lengths won’t reach
Creating custom-length truss spans alongside other F34 segments
Corner connection bridging in multi-direction rigs
Compact display frames and truss arches

The Global F34 square truss system is a professional-grade 4-point box truss engineered for the live events, touring, theatre, and broadcast industries. Built from EN-AW 6082 T6 aluminium alloy, the same specification used in aerospace structural applications, the F34 delivers exceptional strength-to-weight ratio and long-term corrosion resistance.

Why the F34?

The F34’s 290mm × 290mm cross-section provides outstanding rigidity under load, making it ideal for lighting rigs, audio flown systems, staging canopies, and truss arch installations. Each segment connects via precision-machined conical couplers and M12 bolts, creating a secure, repeatable joint that can be assembled and dismantled hundreds of times without wear to the connection points.

Safety & Certification

Global’s F34 series is designed and tested to comply with EN 13814, the European standard for fairground and amusement structures. Every component in this system is manufactured under ISO 9001-certified quality management, ensuring consistent performance across the product range.

Compatibility

All F34 components (straight segments, corners, rings, and base plates) are fully interoperable within the F34 system. The 290mm profile is also compatible with a wide range of industry-standard clamps, coupler plates, and motor attachment hardware.
