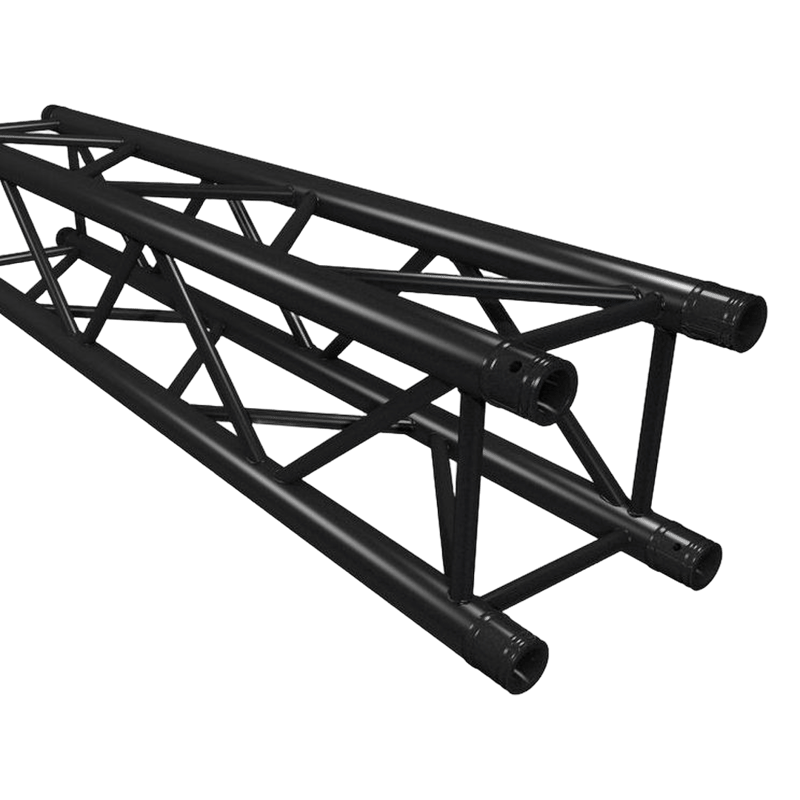

Global F34 Black - 1m

Truss

Matt-black 1 m F34 segment, the same load spec as the silver line finished to vanish into black-box theatre sets, dark drapes, and on-camera stages. Hire on the Gold Coast and in Brisbane.

Type	F34 square truss straight segment (matt black)
Length	1000mm (1m / 3.28ft)
Weight	8.17 kg (18 lbs)
SKU	SQ-4110-MTE/BLK
Series	F34 Square Truss (Matt Black)
Material	EN-AW 6082 T6 aluminium alloy, matt black powder coat
Main Tubes	50mm OD x 2mm wall
Bracing	20mm x 2mm diagonal
Section Width	290mm (11 7/16″)
Brand	Global Truss

Overview

About the Global F34 Black – 1m Straight Segment

The Global F34 Black 1m straight segment is the standard building block of black-finish truss systems. Whether you’re hanging a discreet overhead lighting bar in a black-box theatre or building a multi-section performance rig where the structure needs to vanish into the set, the 1m black segment is the go-to unit. Same structural specification as the silver F34, finished in matt-black powder coat.

Typical Applications

Black-box theatre overhead rigs where silver truss would distract
Corporate stages with dark drape backdrops
Music video sets and TV broadcast where reflective aluminium catches the lens
Award shows, fashion runways, and high-end product launches
Truss towers and vertical column builds in dark-themed venues

The Global F34 matt-black square truss system is the same TUV-approved 4-point box truss as the silver F34 line, finished in a hard-wearing matt-black powder coat. It’s the rig of choice when the truss itself needs to disappear into a black-box theatre, a corporate stage with dark drape, or a music video set where reflective aluminium would steal the shot.

Why the F34 Black?

Identical EN-AW 6082 T6 structural specification to the silver F34: same load ratings, same connector geometry, same 290mm section. The matt-black powder coat is durable enough for the touring circuit and resists fingerprinting and scuffing better than gloss finishes. Mix-and-match with silver F34 segments via the standard conical coupler if your rig calls for it, but most clients hire the black exclusively when the visual brief is “no visible structure”.

Safety & Certification

Designed and tested to comply with EN 13814 (European standard for fairground and amusement structures). Manufactured under ISO 9001-certified quality management. The powder-coat process does not affect the structural rating of the underlying aluminium, so black F34 is rated identically to silver F34.

Compatibility

Fully interoperable with the rest of the F34 system (silver and black). The 290mm profile is compatible with industry-standard clamps, coupler plates, motor attachments, and rigging hardware.
