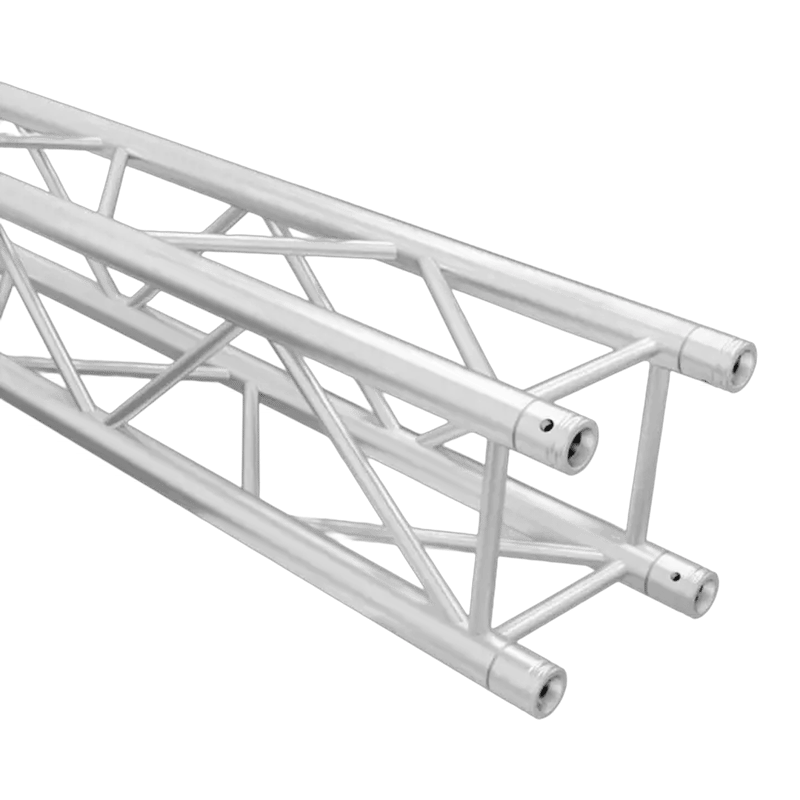

Global F34 Truss - 0.5m

About the Global F34 – 0.5m Straight Segment

The Global F34 0.5m straight segment is one of the most versatile short-length components in the F34 system. At half a metre, it’s long enough to provide visible structure in overhead rigs and arch builds, while remaining compact enough to handle easily by a single operator. It’s a go-to piece for filling out truss configurations where full 1m or 2m segments would overshoot the required span.

Typical Applications

• Short overhead lighting positions
• Truss arch or goal-post builds alongside longer segments
• DJ booth and small stage truss configurations
• Exhibition and trade show display framing

The Global F34 square truss system is a professional-grade 4-point box truss engineered for the live events, touring, theatre, and broadcast industries. Built from EN-AW 6082 T6 aluminium alloy (the same specification used in aerospace structural applications), the F34 delivers exceptional strength-to-weight ratio and long-term corrosion resistance.

Why the F34?

The F34’s 290mm × 290mm cross-section provides outstanding rigidity under load, making it ideal for lighting rigs, audio flown systems, staging canopies, and truss arch installations. Each segment connects via precision-machined conical couplers and M12 bolts, creating a secure, repeatable joint that can be assembled and dismantled hundreds of times without wear to the connection points.

Safety & Certification

Global’s F34 series is designed and tested to comply with EN 13814, the European standard for fairground and amusement structures. Every component in this system is manufactured under ISO 9001-certified quality management, ensuring consistent performance across the product range.

Compatibility

All F34 components, including straight segments, corners, rings, and base plates, are fully interoperable within the F34 system. The 290mm profile is also compatible with a wide range of industry-standard clamps, coupler plates, and motor attachment hardware.
