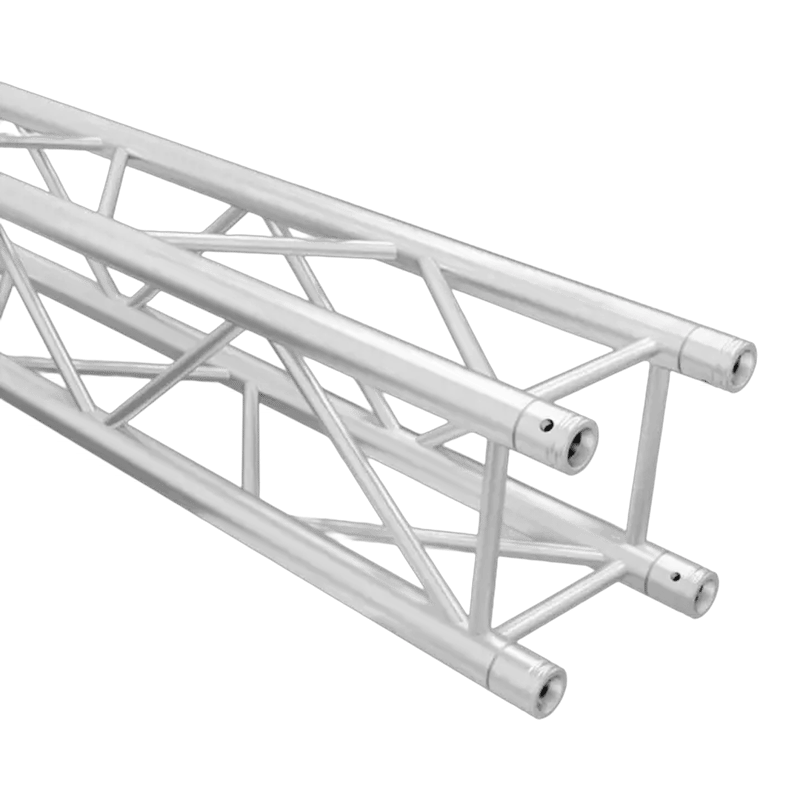

Global F34 Truss - 1m

Truss

Standard building block of most F34 rigs, this 1 m 4-point box segment carries serious distributed load while staying easy to handle for repeatable grid layouts. Hire on the Gold Coast.

Type	F34 square truss straight segment
Length	1000mm (1m / 3.28ft)
Weight	8.17 kg (18 lbs)
SKU	SQ-4110
Series	F34 Square Truss
Material	EN-AW 6082 T6 aluminium alloy
Main Tubes	50mm OD × 2mm wall
Bracing	20mm × 2mm diagonal
Section Width	290mm (11 7/16″)
Brand	Global Truss

Downloads Spec Sheet (PDF)

Overview

About the Global F34 – 1m Straight Segment

The Global F34 1m straight segment is the standard building block of most truss systems. Whether you’re constructing a straightforward overhead lighting bar or a multi-section performance rig, the 1m segment is the go-to unit for flexible, repeatable grid layouts. Its moderate weight and manageable length make it easy to handle on site, while its full F34 structural specification means it can carry significant distributed loads.

Typical Applications

Overhead lighting rigs in venues and theatres
Concert and festival stage grids
Corporate event and exhibition structures
Broadcast and film set rigging
Truss towers and vertical column builds

The Global F34 square truss system is a professional-grade 4-point box truss engineered for the live events, touring, theatre, and broadcast industries. Built from EN-AW 6082 T6 aluminium alloy (the same specification used in aerospace structural applications), the F34 delivers exceptional strength-to-weight ratio and long-term corrosion resistance.

Why the F34?

The F34’s 290mm × 290mm cross-section provides outstanding rigidity under load, making it ideal for lighting rigs, audio flown systems, staging canopies, and truss arch installations. Each segment connects via precision-machined conical couplers and M12 bolts, creating a secure, repeatable joint that can be assembled and dismantled hundreds of times without wear to the connection points.

Safety & Certification

Global’s F34 series is designed and tested to comply with EN 13814, the European standard for fairground and amusement structures. Every component in this system is manufactured under ISO 9001-certified quality management, ensuring consistent performance across the product range.

Compatibility

All F34 components, including straight segments, corners, rings, and base plates, are fully interoperable within the F34 system. The 290mm profile is also compatible with a wide range of industry-standard clamps, coupler plates, and motor attachment hardware.
