Global F34 Truss - 1m Ring

About the Global F34 – 1m Ring

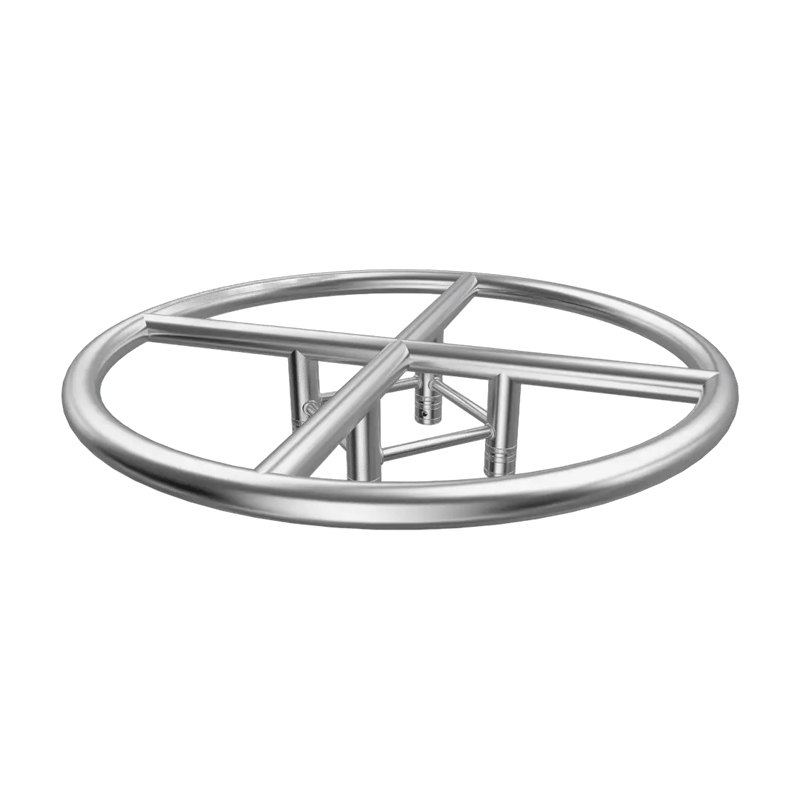

The Global F34 1m Ring (F34 Top Ring 100) is a 1-metre diameter circular truss ring built from the same F34 square truss profile as the straight segments. Designed primarily for freestanding lighting towers, it provides a 360° mounting platform for PAR cans, LED bars, moving heads, and other fixtures, allowing a full surround-light effect from a compact floor footprint.

The ring is supplied as a complete kit with conical connectors, pins, and R-clips for fast, tool-minimal assembly. Paired with vertical F34 straight segments and a base plate, it forms a classic and highly versatile lighting tower configuration used across festivals, clubs, theatres, and corporate events.

Typical Applications

• Freestanding lighting towers with 360° fixture coverage
• Circular truss arch structures
• DJ booth and club installation lighting rigs
• Festival and outdoor event stage surrounds

The Global F34 square truss system is a professional-grade 4-point box truss engineered for the live events, touring, theatre, and broadcast industries. Built from EN-AW 6082 T6 aluminium alloy, the same specification used in aerospace structural applications, the F34 delivers exceptional strength-to-weight ratio and long-term corrosion resistance.

Why the F34?

The F34’s 290mm × 290mm cross-section provides outstanding rigidity under load, making it ideal for lighting rigs, audio flown systems, staging canopies, and truss arch installations. Each segment connects via precision-machined conical couplers and M12 bolts, creating a secure, repeatable joint that can be assembled and dismantled hundreds of times without wear to the connection points.

Safety & Certification

Global’s F34 series is designed and tested to comply with EN 13814, the European standard for fairground and amusement structures. Every component in this system is manufactured under ISO 9001-certified quality management, ensuring consistent performance across the product range.

Compatibility

All F34 components (straight segments, corners, rings, and base plates) are fully interoperable within the F34 system. The 290mm profile is also compatible with a wide range of industry-standard clamps, coupler plates, and motor attachment hardware.
