Global F34 - 6 Way Cube Corner

Truss

Six-way universal junction block that joins F34 segments at all six faces of a cube, unlocking box grids, braced towers, and multi-directional 3D rigging from one point. Hire across SEQ.

Type	F34 6-way universal junction block
Connections	6 × 90° (X, Y, Z axes)
Weight	8.17 kg (18 lbs)
Hex Key	10mm
Includes	2 × connecting hardware sets
SKU	ST-UJB-12
Series	F34 Square Truss
Material	EN-AW 6082 T6 aluminium alloy
Main Tubes	50mm OD × 2mm wall
Bracing	20mm × 2mm diagonal
Section Width	290mm (11 7/16″)
Brand	Global Truss

Downloads Spec Sheet (PDF)

View the F34 - 6 Way Cube Corner at Global Truss

Overview

About the Global F34 – 6 Way Cube Corner

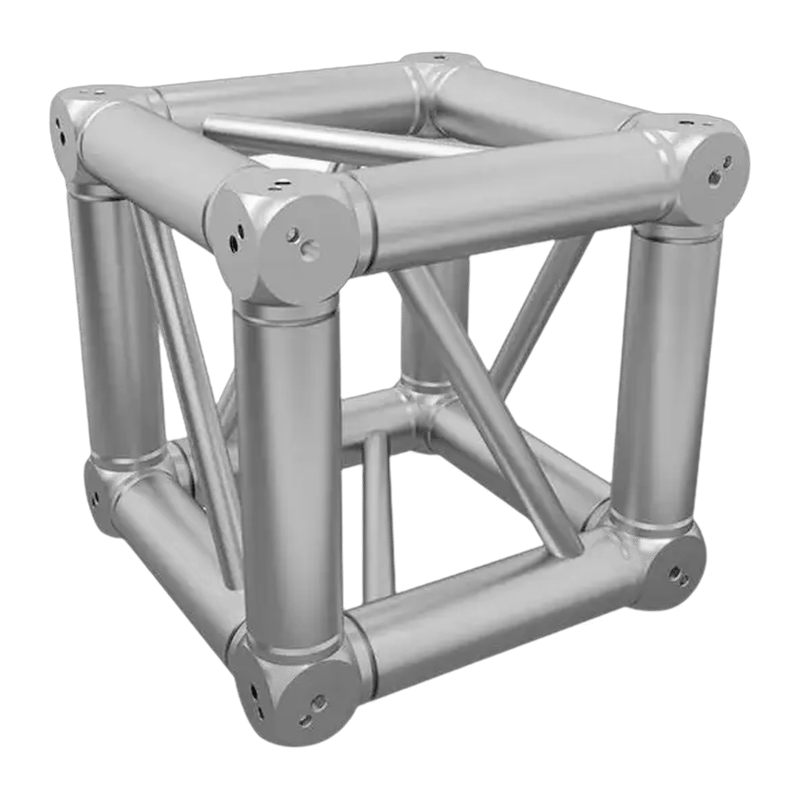

The Global F34 6 Way Cube Corner (ST-UJB-12 Universal Junction Block) is the most capable connector in the F34 system, enabling truss segments to join at all six faces of a single cubic block. This allows the construction of three-dimensional truss structures, including box grids, towers with lateral bracing, and multi-directional overhead rigs, from a single, compact junction point.

Each face of the block accepts a standard F34 segment via M12 bolt and conical coupler. Two sets of connecting hardware are included. A 10mm hex key is the only tool required for assembly and disassembly, making it quick to rig and strike in live event environments.

Typical Applications

Three-dimensional truss box grids
Tower structures with lateral bracing connections
Ceiling grids with drop arms
Complex multi-directional rigging configurations
Intersecting vertical and horizontal truss runs

The Global F34 square truss system is a professional-grade 4-point box truss engineered for the live events, touring, theatre, and broadcast industries. Built from EN-AW 6082 T6 aluminium alloy, the same specification used in aerospace structural applications, the F34 delivers exceptional strength-to-weight ratio and long-term corrosion resistance.

Why the F34?

The F34’s 290mm × 290mm cross-section provides outstanding rigidity under load, making it ideal for lighting rigs, audio flown systems, staging canopies, and truss arch installations. Each segment connects via precision-machined conical couplers and M12 bolts, creating a secure, repeatable joint that can be assembled and dismantled hundreds of times without wear to the connection points.

Safety & Certification

Global’s F34 series is designed and tested to comply with EN 13814, the European standard for fairground and amusement structures. Every component in this system is manufactured under ISO 9001-certified quality management, ensuring consistent performance across the product range.

Compatibility

All F34 components (straight segments, corners, rings, and base plates) are fully interoperable within the F34 system. The 290mm profile is also compatible with a wide range of industry-standard clamps, coupler plates, and motor attachment hardware.
