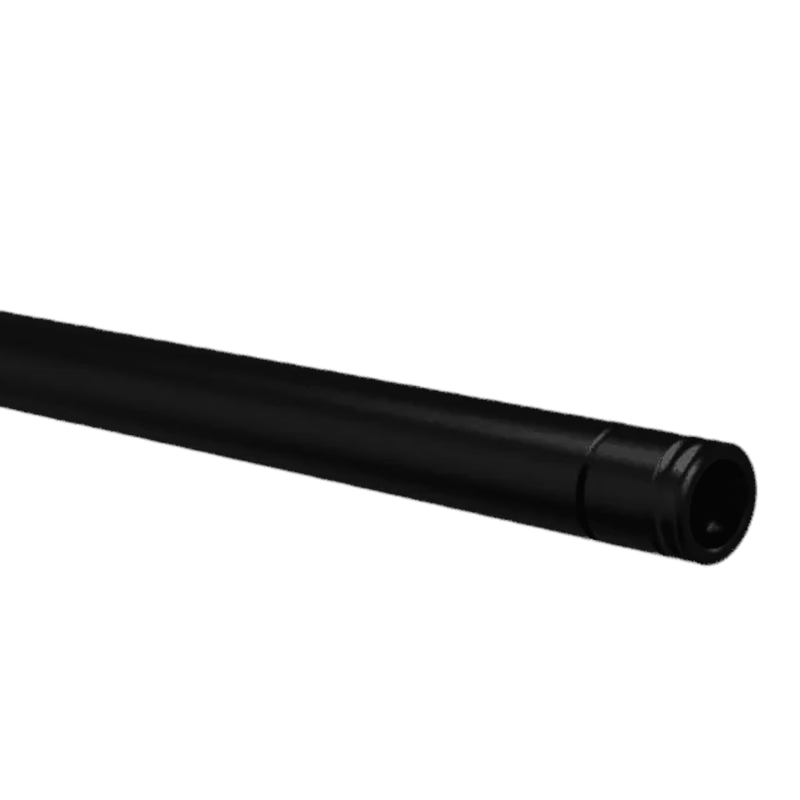

Global Truss F01 Black – 1m

About the Global F01 Black – 1m Single Tube

The Global F01 Black 1m single tube is the standard building block of the F01 line. At 1m and just under a kilo, it’s the go-to length for backdrop frames, photo-booth uprights, lightweight overhead bars for small LED fixtures, and uplighter mounts.

Typical Applications

• Backdrop and step-and-repeat photo-booth frames
• Lightweight overhead bars for small LED PARs and Astera tubes
• AV cable and signal-runs across small spans
• Uplighter, prop, and signage mounts in event venues

The Global F01 Black single-tube truss is the lightest member of the Global Truss F-series. A single matt-black 50mm aluminium tube with the same connector geometry as F32/F33/F34, it’s used wherever you need a clean, minimal structural line for display frames, photo-booth backdrops, lightweight overhead bars for small fixtures, and uplighter mounts. Pair multiple F01 tubes with the SPACER 105 to build mini parallel-tube grids when full square truss would be overkill.

Compatibility

Standard F-series M12 conical connector and pin/R-clip system. Compatible with the Global Truss F01 corner blocks, junction kits, and the 105mm spacer (SP0118) used to fix two parallel F01 tubes into a lightweight ladder.

Material & Build

Single 50mm OD x 2mm wall tube in EN-AW 6082 T6 aluminium with a hard-wearing matt black powder coat, the same aerospace-grade alloy used across the F-series. Manufactured under ISO 9001-certified quality management. The matt black powder coat matches the F34 Black line and does not affect the tube’s structural rating.
