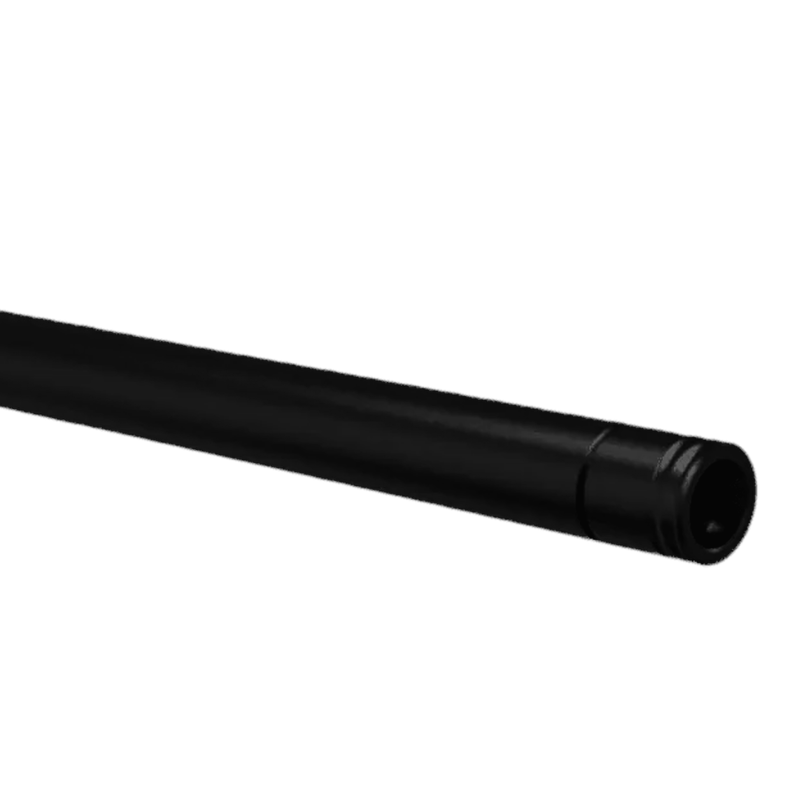

Global Truss F01 Black – 3m

Longest standard unit in the F01 line, a 3 m matt-black tube that spans a full-width backdrop or an overhead lighting bar in one clean piece. Hire across the Gold Coast and Brisbane.

Type	F01 single-tube straight segment (matt black)
Length	3000mm (3m / 9.84ft)
Weight	3.18 kg (7 lbs)
SKU	F010066
Series	F01 Single Tube Truss (Matt Black)
Material	EN-AW 6082 T6 aluminium alloy, matt black powder coat
Tube	50mm OD x 2mm wall
Brand	Global Truss

View the Truss F01 Black – 3m at Global Truss

Overview

About the Global F01 Black – 3m Single Tube

The Global F01 Black 3m single tube is the longest standard unit in the F01 line. Used for full-width backdrops, longer overhead lighting bars, and any single-tube application where the run needs to reach across a stage in one piece.

Typical Applications

Full-width backdrops, scrims, and signage drops
Long single-piece overhead lighting bars
Stage-front uprights and proscenium framing for small-mid venues

The Global F01 Black single-tube truss is the lightest member of the Global Truss F-series. A single matt-black 50mm aluminium tube with the same connector geometry as F32/F33/F34, it’s used wherever you need a clean, minimal structural line for display frames, photo-booth backdrops, lightweight overhead bars for small fixtures, and uplighter mounts. Pair multiple F01 tubes with the SPACER 105 to build mini parallel-tube grids when full square truss would be overkill.

Compatibility

Standard F-series M12 conical connector and pin/R-clip system. Compatible with the Global Truss F01 corner blocks, junction kits, and the 105mm spacer (SP0118) used to fix two parallel F01 tubes into a lightweight ladder.

Material & Build

Single 50mm OD x 2mm wall tube in EN-AW 6082 T6 aluminium with a hard-wearing matt black powder coat, the same aerospace-grade alloy used across the F-series. Manufactured under ISO 9001-certified quality management. The matt black powder coat matches the F34 Black line and does not affect the tube’s structural rating.
